◆ True double conversion on-line with DSP control technology
◆ Support CVCF (Constant Voltage,Constant Frequency) mode, suitable for highly sensitive devices
◆ Output power factor 1.0

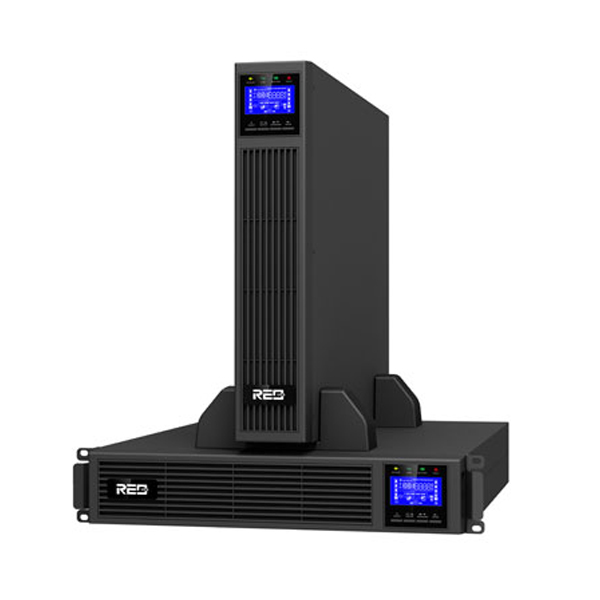

◆ Rack/Tower convertible design
◆ 3-level inverter technology
◆ Hot swappable battery design
◆ Active input power factor correction, input power factor>0.99
◆ Wide input voltage range 90V~300V , wide input frequency range 40~70Hz
◆ Most compact size, all-in-one design with internal battery , 3U for 6KVA UPS
◆ Generator compatible
◆ Remote On & Off (ROO) function
◆ Brilliant full color LCD display with multi-language menu
◆ 50Hz/60Hz frequency converter mode
◆ Most compact size, all-in-one design with internal battery
◆ Dual AC input (optional)
◆ PDU with maintenance bypass switch with load segment control (optional)
◆ HID USB enable monitoring on UPS without software installation (optional)
◆ Communications: RS232/USB/EPO/Intelligent slot (standard), MODBUS/ RS485/SNMP/AS400 cards (optional)
◆ Reliable design, use strong glass fiber base (FR4) double side PCB which with conformal coating
Our advantages
-
To meet customized software and hardware
-
To support SKD package for some countries imported request.
-
7-15dasy delivery time for samples test
-
Online quick reply on technical questions
REO
Accept Deeply Customized Products
| Model | Ultra II RT 1K | Ultra II RT 2K | Ultra II RT 3K |
| Capacity | 1KVA/1KW | 2KVA/2KW | 3KVA/3KW |
| AC INPUT | |||
| Wiring | L/N+PE | ||
| Rated Voltage | 208/220/230/240VAC | ||
| Voltage Range | 90~300VAC | ||
| Frequency Range | 40Hz~70Hz | ||
| Input Power Factor | ≥0.99 | ||
| AC OUTPUT | |||
| Wiring | L/N+PE | ||
| Output Voltage | 208/220/230/240VAC | ||
| Voltage Regulation | ±1% | ||
| Output Frequency | 50/60±4Hz (Synchronized range); 50/60Hz±0.1 (Battery mode) | ||
| Waveform | Pure sine wave | ||
| Power Factor | 1.0 | ||
| Distortion(THDV%) | <2% (Linear Load); <7% (Non-Linear Load) | ||
| Over load Capability | 1Min@105%~125% rated load ; 10Sec.@125%~150% rated load ; 0.2Sec.@>150% rated load | ||
| EFFICIENCY | |||
| Line Mode | 92% | 93.5% | 93.5% |
| Battery Mode | 90% | 91.5% | 91.5% |
| ECO Mode | >96% | ||
| BATTERY & CHARGER | |||
| Rated Battery Voltage | 36VDC Internal |
72VDC Internal |
72VDC Internal |
| UPS Internal Battery (VRLA) | 12V/7AH x3pcs | 12V/7AHx6pcs | 12V/9AHx6pcs |
| Backup Time | >10mins @ Half Load | >6mins @ Half Load | >6mins @ Half Load |
| Charging Current | 2A/4A (Settable by LCD) | ||
| HMI | |||
| LCD DISPLAY | Input mains voltage, frequency, load level, operation mode, health status | ||
| Standards Communication Interface |
(1) RS232 (2) EPO / ROO port (3) Intelligent slot (4) USB port | ||
| Optional | SNMP Card / MODBUS Card / Relay Card | ||
| ENVIRONMENT | |||
| Temperature Range | -10~50oC | ||
| Relative Humidity | 0-98%（Non-condensing） | ||
| Acoustics Noise | <55dB @ 1 meters | ||
| PHYSICAL | |||
| UPS Dimension WxDxH (mm) |
440x428x88 (2U) | ||
| UPS N.W (kg) | 15.8 | 25.3 | 28.8 |
| EBM Dimension WxDxH (mm) |
440x428x88 (2U) | ||
| EBM (External Battery Module ) | 12V/7AH x 6pcs (3S*2P) | 12V/7AH x 6pcs (6S*2P) | 12V/9AH x 6pcs (6S*1P) |
| EMB N. W(kg) | 18.5 | 18.5 | 21.5 |
• Product specifications are subject to change without prior notice
• Model with”L” mean long back up time model, without “L” mean standard model
Accept Deeply Customized Products
| Model | Ultra RT 6K | Ultra RT 10K |
| Capacity | 6KVA/6KW | 10KVA/10KW |
| AC INPUT | ||
| Wiring | L/N+PE | |
| Rated Voltage | 208/220/230/240Vac | |
| Voltage Range | 90~300VAC | |
| Frequency Range | 40Hz~70Hz | |
| Input Power Factor | ≥0.99 | |
| AC OUTPUT | ||
| Wiring | L/N+PE | |
| Output Voltage | 208/220/230/240VAC | |
| Voltage Regulation | ±1% | |
| Output Frequency | 50/60±4Hz (Synchronized range); 50/60Hz±0.1 (Battery mode) | |
| Waveform | Pure Sine Wave | |
| Power Factor | 1.0 | |
| Distortion (THDV%) | <2%(Linear Load) ; <7%(Non-Linear Load) | |
| Overload Capability | 10Min@105%~125% rated load; 60Sec.@125%~150% rated load; 0.5Sec.@>150% rated load | |
| EFFICIENCY | ||
| Line Mode | >94% | |
| Battery Mode | >92% | |
| ECO Mode | 97% | |
| BATTERY & CHARGER | ||
| Rated Battery Voltage | 144VDC Internal |
192VDC Internal |
| UPS Internal Battery (VRLA) | 12V/9AH x 12pcs | 12V/9AH x 16pcs |
| Backup Time | 3 mins @ 6kW 10mins @ 3kW |
1min @ 10kW 6mins @ 5KW |
| Charging Current | 2A/4A (settable by LCD) | |
| HMI | ||
| LCD DISPLAY | Input mains voltage, frequency, load level, operation mode, health status | |
| Standards Communication Interface | (1) RS232 (2) EPO / ROO port (3) Intelligent slot (4) USB port | |
| Optional | SNMP Card / MODBUS Card / Relay Card | |
| ENVIRONMENT | ||
| Temperature range | -10~50oC | |
| Relative Humidity | 0-98%（Non-condensing） | |
| Acoustics Noise | <55dB @ 1 meters | |
| PHYSICAL | ||
| UPS Dimension WxDxH (mm) |
440x720x132 (3U) | 440x640x220 (5U) |
| UPS N.W(kg) | 51.1 | 68.5 |
| EBM Dimension WxDxH (mm) |
440x500x132 (3U) | |
| EBM (External Battery Module ） | 12V/9AH x 12pcs | 12V/9AH x 16pcs |
| EMB N. W(kg) | 38.5 | 49 |
- Product specifications are subject to change without prior noticeAmbient
- temperature>30°C, output power factor is 0.9
- Model with”L” mean long back up time model, without “L” mean standard model
